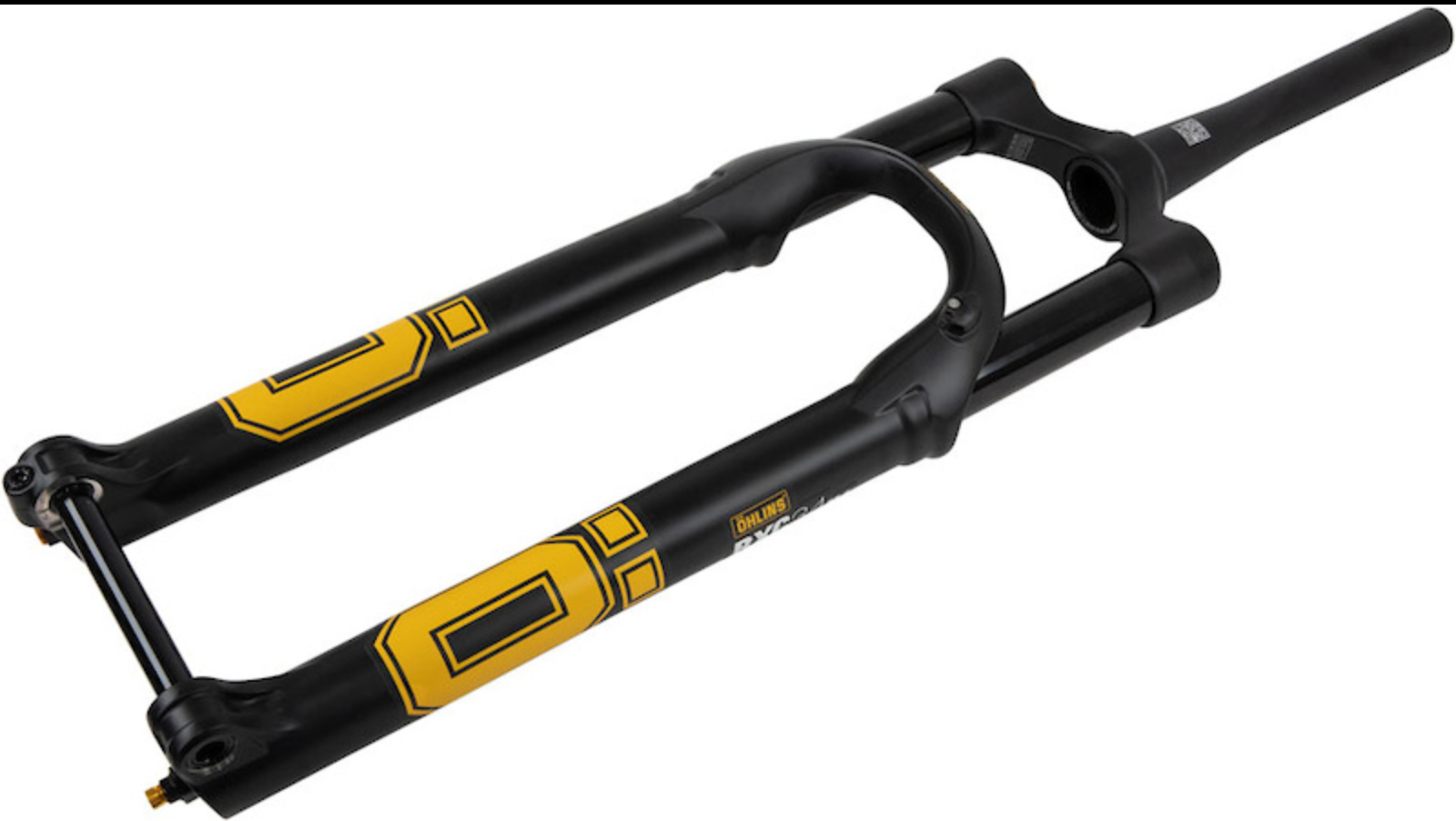

2025 Ohlins RXC34 m.1 Suspension Fork 29" 120mm

Unleash the next level of racing performance with the latest innovation in Ohlins front suspension – the RXC34 m.1 XC fork. Equipped with their race-proven floating axle design, the RXC34 m.1 features a chassis with a stiff yet lightweight aluminum crown construction, providing precise steering and predictable performance. The RXC34 m.1 incorporates an all-new damper and updated air spring to further enhance speed and control on technical cross-country tracks. As part of the Öhlins XC suspension system, the RXC34 m.1 boasts a rider-friendly system to adjust air spring progressiveness and stroke. And with their race proven setting bank, you’ll be able to fine-tune the fork to your unique riding style and bike linkage.

• Uses the new XC-optimized OTX14 damper that's been extensively designed to provide a slim, lightweight damper packed with technology
• Highly adjustable with race-proven setting bank to match riding style and bike
• Two-chamber air spring feature a large negative air chamber balanced with the damper’s characteristics in the three different ride modes – open, pedal, and lockout
• Creates the initial movement required for superior traction while retaining best-in-class, predictable support when pushing hard
• 12 clicks of LSC and 12 Clicks of rebound
• Up to 5 positive volume spacers to adjust progressiveness (depending on travel)

Positive Spring: Air
Wheel Size: 29"
Brake Type: Post Mount 180
External Adjustments: High Speed Compression Damping , Low Speed Compression Damping , Rebound Damping
Crown Race: 40
Negative Spring: Air
Stanchion Diameter: 34
Front Axle: 15mm Thru x 110mm
Steerer Type: Tapered
Offset: 44
Maximum Tire Width: 66
Color: Black
S.H.I.S. Stem Clamp Diameter: 28.6
Travel (mm): 120
Axle to Crown Length: 531
Lockout Switch: Crown
Defined Color: Black
Weight: 1598
